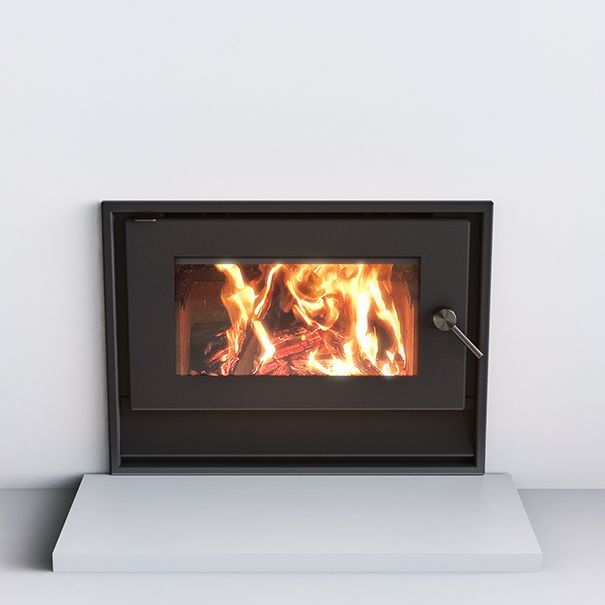

Blaze B520 Inbuilt

The Blaze Inbuilt range is designed to be installed into either a full masonry cavity or with optional zero clearance kit. Easy to use features make the Blaze inbuilt wood heater a great addition to any living space. Comes standard with a modern minimalistic frame to suit any modern home, plus strong 6mm steel construction, modern black nickel door handle, ceramic glass and firebrick internal firebox lining. Comes standard with a 3 speed remote control fan to suit a modern heater. Also available in a larger B820 model.

ENQUIRE NOW

Small- Medium Heater

  • Convection heater with 3 speed remote control fan
  • Optional Zero Clearance Kit
  • Heating capacity 140-180sqm
  • Ave heat output 7.2kW
  • Efficiency 65%
  • Emissions 1.3g/Kg

Minimum Hearth Requirements - Heater installed below 250mm off floor

Cement Sheet Thickness 15mm

Brick Thickness 110mm

Width 900mm

Front (Cement Sheet) 400mm

Front  (Brick) 300mm


Minimum Hearth Requirements - Heater installed above 250mm off floor

Cement Sheet Thickness 7.5mm

Brick Thickness 110mm

Width 900mm

Front (Cement Sheet) 300mm

Front  (Brick) 300mm


Dimensions

Firebox

648 w × 584 h × 461 d mm


Overall

878 w × 594 h × 482 d mm


Rear of heater to middle of flue 188mm


3 or 4 sided fascias available in 50mm or 100mm widths
