Charnwood Bay BX

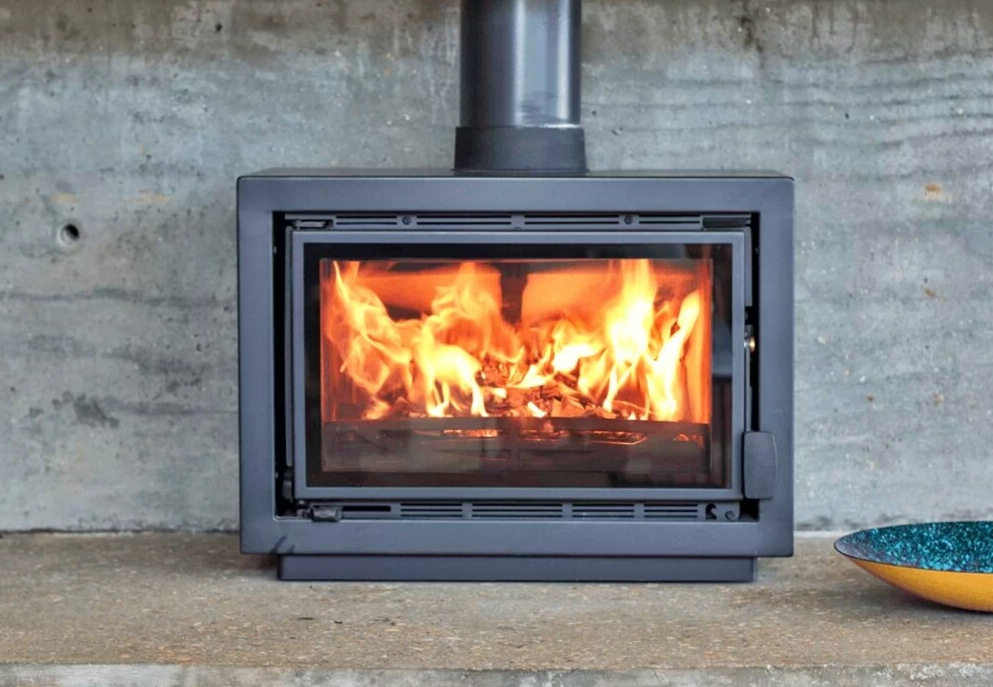

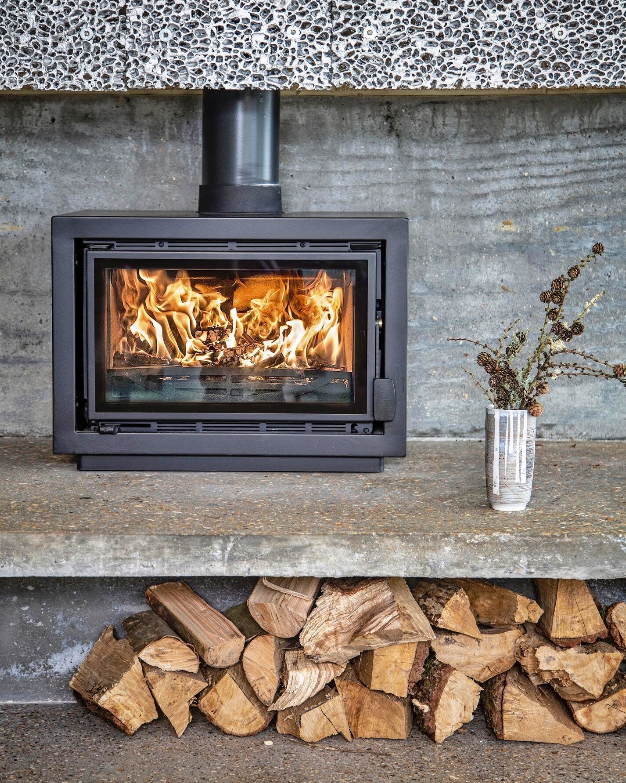

Love the look of landscape fires? The UK made Charnwood Bay BX is the perfect size for smaller areas, heating up to 120sqm. Elegant is the best description for this Charnwood Wood Heater, which boasts a clean linear glass door with the cool to touch door handle, and a simple air control. It provides flexible installation options including on a raised concrete bench,  wood stand or bench stand.


There are a lot of large wood heaters on the market, but the Charnwood Bay BX is the "just right" size for the smaller home - or the medium sized passive home that just doesn't need too much heat.

The Charnwood Bay BX comes standard with the ability to have an outside air intake and if installed with a room sealed insulated flue kit (RSF), you will get an additional 8% performance from your Bay BX, and eliminate drafts in your home.

Charnwood is a quality brand and is the winner of the UK most recognised award.

The King’s Awards for Enterprise are the most prestigious business awards in the UK. 2024 marks the second year of The King’s Awards for Enterprise, reflecting His Majesty The King’s desire to continue the legacy of HM Queen Elizabeth II’s by recognizing outstanding UK businesses.

Small Heater

  • Made in the UK
  • Heats up to 120sqm (5.5kW)
  • Emissions 0.8g/Kg
  • Efficiency 68% (71% with Insulated flue)
  • Convection heater
  • Cast iron door
  • Impressive fire viewing area
  • Top flue only
  • Outside air compatible
  • 10mm steel top and base
  • 10 year firebox warranty
  • Optional store and bench stand bases
  • Vermiculite lined firebox
  • Low rear and corner clearances
  • Optional toasting fork available

Dimensions

Charnwood Bay BX

500 H x 688 W x 403 D mm


Charnwood Bay BX with Store Stand

1000 H x 535 W x 500 D

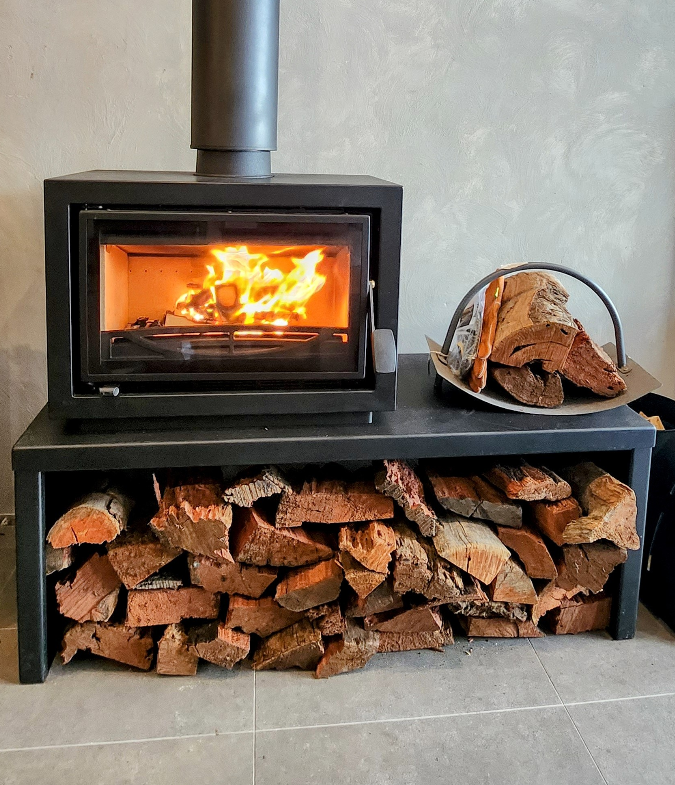

Charnwood Bay BX with Bench Stand

1000 H x 1300 W x 500 D


Rear of heater to flue centre 151mm


Weight

103Kg (Unit)

126 Kg (Unit & Store Stand

139Kg (Unit & Bench Stand)


MINIMUM CLEARANCES

Rear 100mm

Side 200mm

Corner 70mm

Front 300mm
