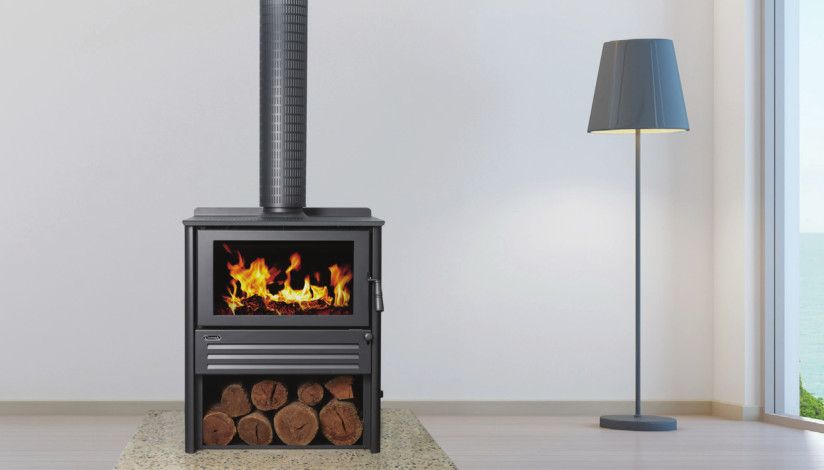

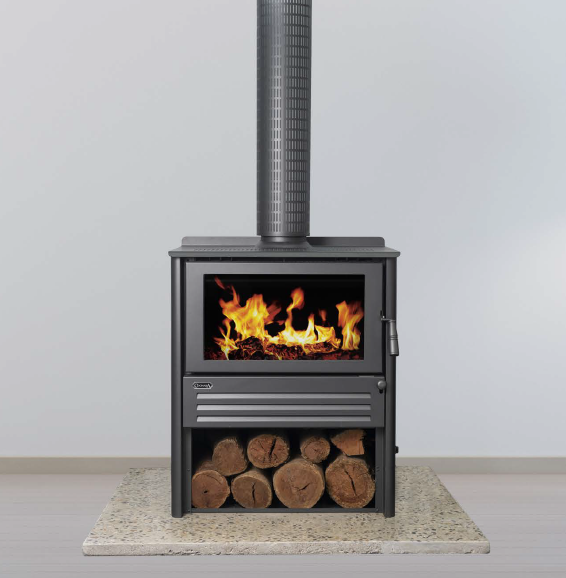

The Coonara Settler C600 Ranch is a recent addition into the Coonara family. Based off the Settler C600 but with a wood stacker base. This means it's a bit taller but still heats up to 30 squares and has Australian made cast iron liners in the firebox, 3 speed fan and  will add style and appeal to any household. Having  the added bonus of storing your wood underneath, means you don’t have to venture outside on those cold & chilly nights.

Large Heater

  • Made in Australia
  • Heating capacity up to 30 squares
  • Ave peak power output 15.1Kw
  • Ave Efficiency 63%
  • Emissions 1.3g/Kg
  • Cast Iron side liners and baffle plate
  • Wood storage base
  • 3 speed fan comes standard
  • Side panels come plain or with a tree design
  • 10 year firebox warranty

Dimensions

950 H x 780 W x 560 D mm

Weight: 182Kg


Back of heater to centre of flue 165mm


Minimum Clearances

Rear 100mm

Side 375mm

Corner 150m

Front 500mm

Installation & Operating Instructions

Download Brochure
