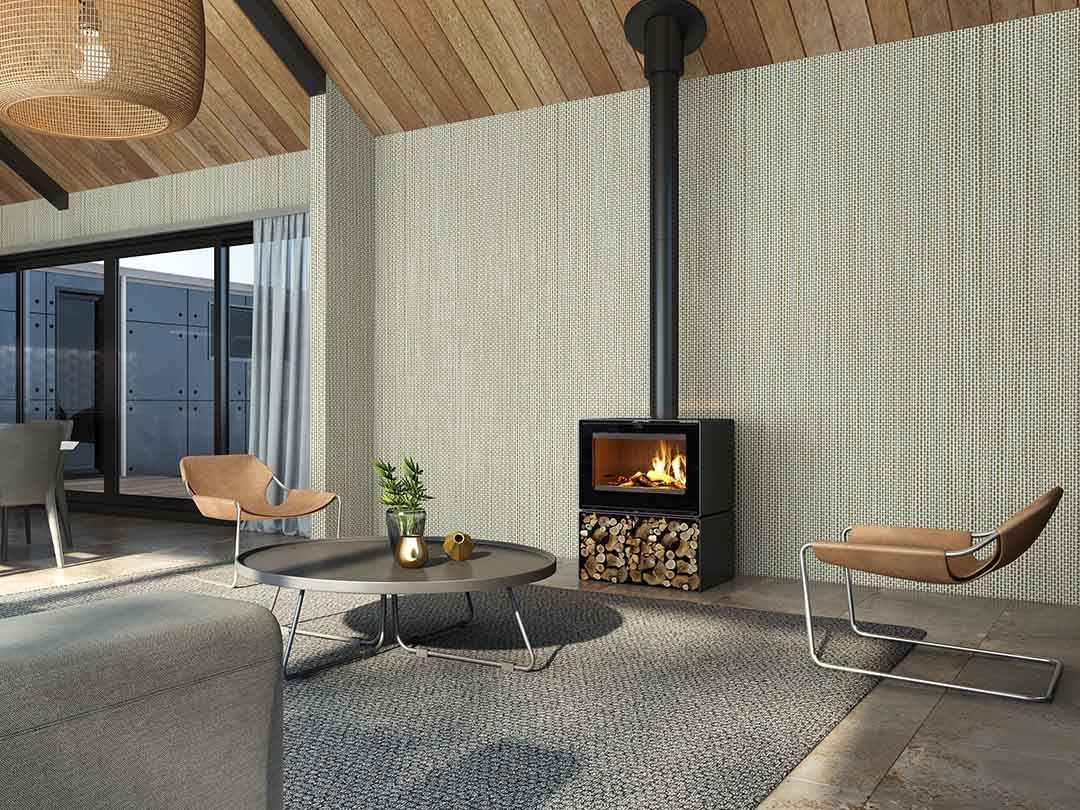

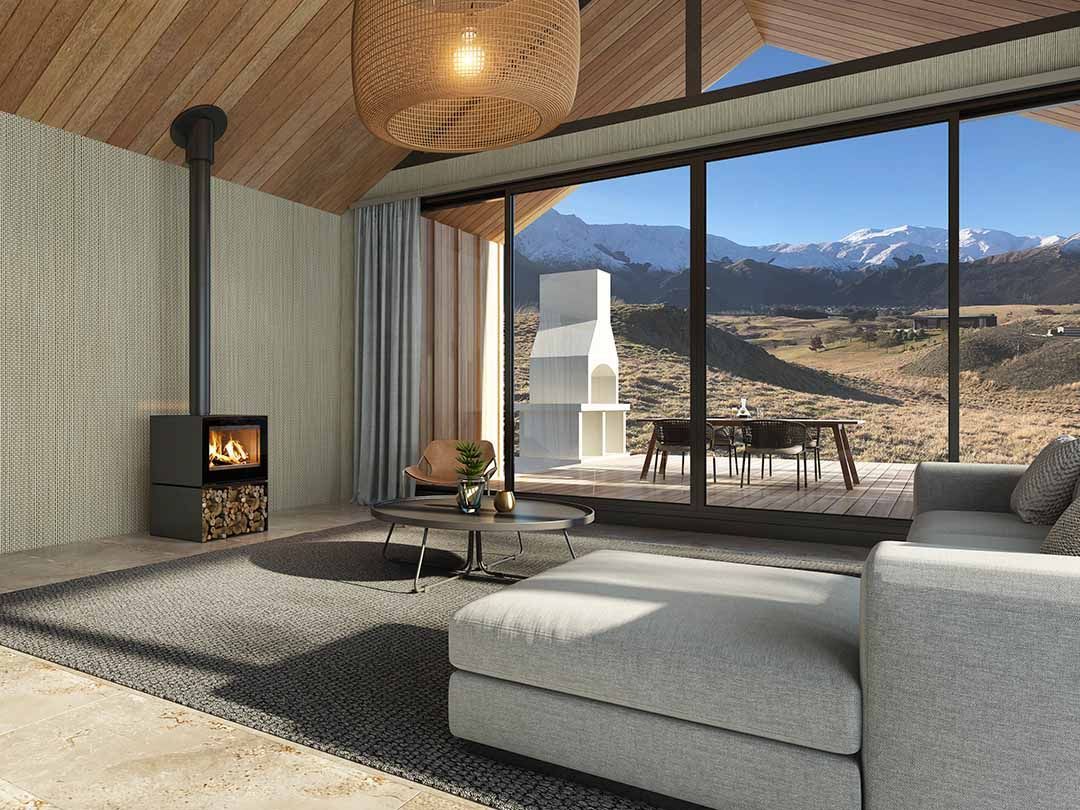

With a heating capacity up to 250sqm, the VisionLINE Phoenix offers a modern design with clean, sophisticated lines, and the option of a convenient wood storage / stacker base. Taking its design principles from its larger counterpart the VisionLINE Taurus, the Phoenix provides a stunning view of the fire and is the perfect complement for any contemporary home. Featuring a unique rear crossflow baffle system, which gives you more room for fuel with a bypass for easy starting, and optional dual fans, the Phoenix will help create a warming environment during the harshest of Australian winters.

Medium Heater

  • Heats up to 250sqm
  • Peak efficiency 74%
  • Emissions 1.0g/Kg
  • Up to 12hr burn time
  • Full glass door
  • Rear Crossflow baffle system
  • Heavy duty kiln brick lined firebox with ash lip
  • 6mm Steel construction
  • Baffle bypass system for easy starting
  • Single burn rate control
  • Outside air ready
  • Optional dual fans
  • Removable handle
  • Can fit up to 460mm log

Dimensions

VisionLINE Phoenix

539 H x 690 W x 630 D mm


Rear of Heater to Centre of Flue 172mm


MINIMUM CLEARANCES

(8" deco mesh with flue shield)

Rear 150mm

Side 425mm

Corner 150mm

Front 300mm



Can reduce rear and side clearances with use of  a wall shield
