ADF Linea 100 Freestanding

The epitome of European style and design the ADF Linea 100 Freestanding wood burning fireplace offers the perfect balance of form and function. The fireplace benefits from a magnificent flame picture window providing an uninterrupted view of the fire. Choose from the optional bench or pedestal to suit your style.


The fire is not only eye-catching, it operates beautifully. Internally an automatic flue damper is designed to significantly reduce smoke ingress into the room during refuelling, by increasing the flue draft. When opening the door, the damper automatically fully opens pulling more air upwards therefore reducing the chance of any smoke being let out into the room. When the door is closed the damper partially closes, which ensures the heat remains inside the firebox. This keeps your house at optimal temperatures and your wood consumption to a minimum.

A high density thermal lining manufactured from vermiculite helps insulate the combustion chamber to protect the body from the heat produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

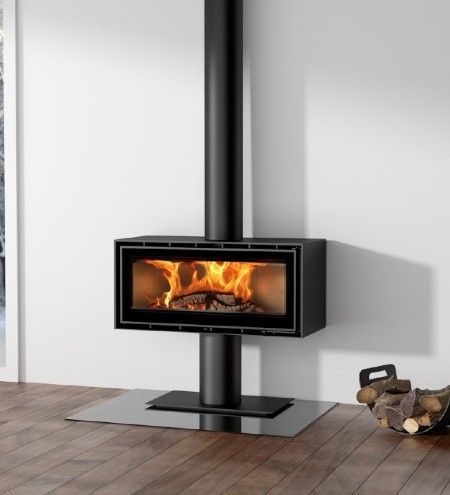

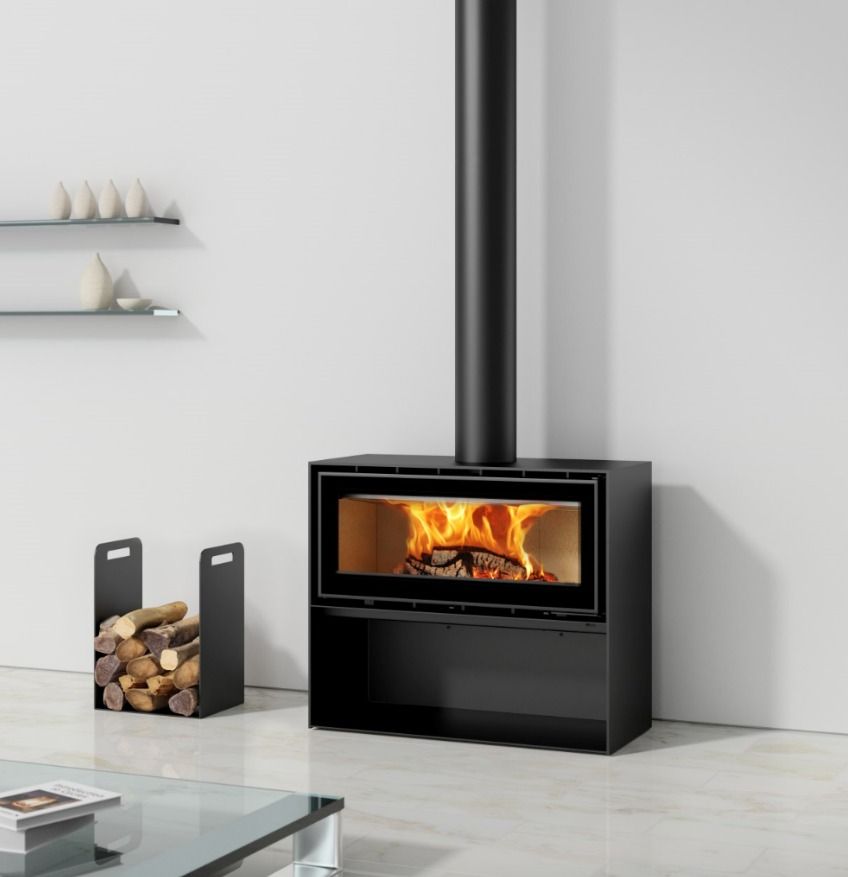

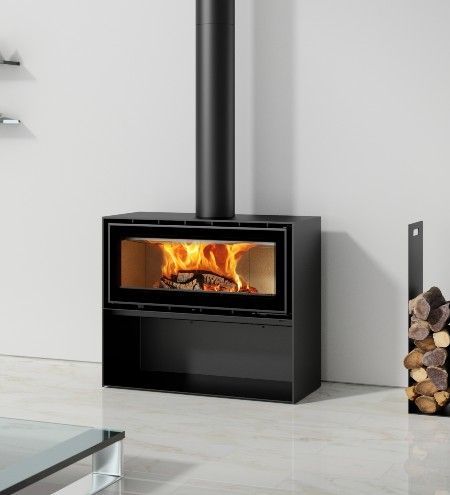

The ADF Linea 100 freestanding model is also available with a pedestal base (Linea 100 P) or stacker base (Linea 100 L).


Minimum Clearances (with rear shield and flue shield)

Rear 200mm

Side 475mm

Corner 475mm

Front 650mm


ENQUIRE NOW

Medium - Large Heater

  • Heating capacity 200-250sqm (17kW)
  • Optional pedestal or stacker base
  • Optional 2 speed fan on body & stacker units
  • Peak efficiency 70%
  • Emmissions 1.2g/Kg
  • 8" flue with automatic flue damper
  • Fully vermiculite lined firebox
  • Outside air compatible on B model
  • Made in Portugal

Dimensions

Body Unit: 465 h x 1012 w × 450 d mm

Unit & Pedestal Base: 865 h x 1012 w x 450 d mm

Unit & Stacker Base: 865 h x 1012 w x 450 d mm


Rear of heater to centre of flue 175mm


Unit Body Weight 186 Kg

Unit and Pedestal Base Weight 215 Kg

Unit and Stacker Base Weight 250 Kg


MINIMUM CLEARANCES

(with rear heat shield & flue shield)


Rear 100mm

Side 525mm

Corner 525mm

Front 750mm
