ADF Hayra 85 Freestanding

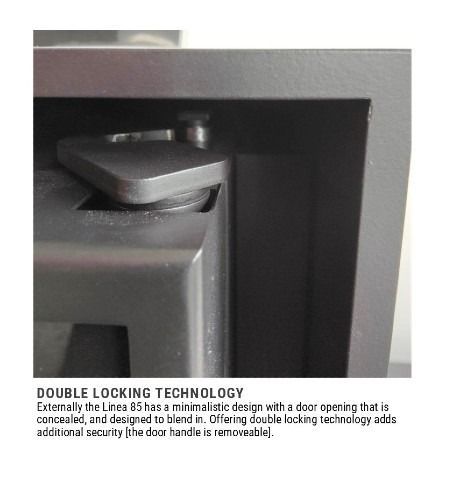

Coupled with a sleek European design and manufacture,  the ADF Hayra 85 freestanding woodfired heater presents a minimalistic, modern shape. The spectacular large soot-free glass door ensures a beautiful and uninterrupted view of the flames and is easy to open with its removable handle. The soft round lines of the firebox are constructed using high strength 5mm quality steel.

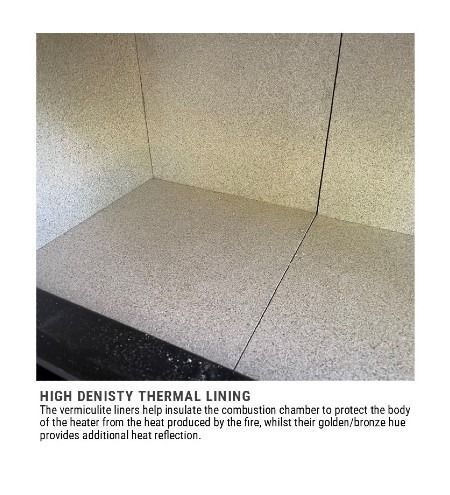

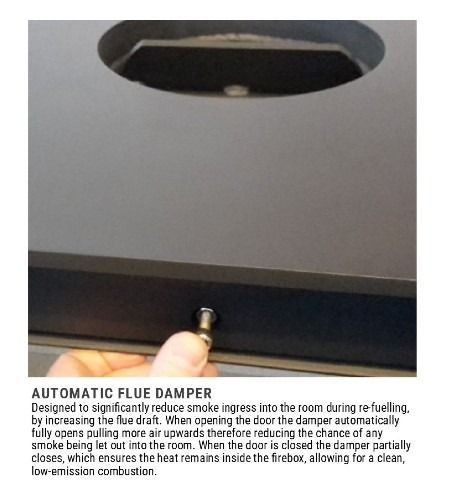

These fires aren't only eye-catching, they operate beautifully. Internally a unique automatic flue damper significantly reduces smoke ingress to the room on re-fuelling, and a high-density vermiculite lining system insulates the combustion chamber providing better heat reflection. In addition the simplicity in design of the air wash and primary air system belies how well these fires function.

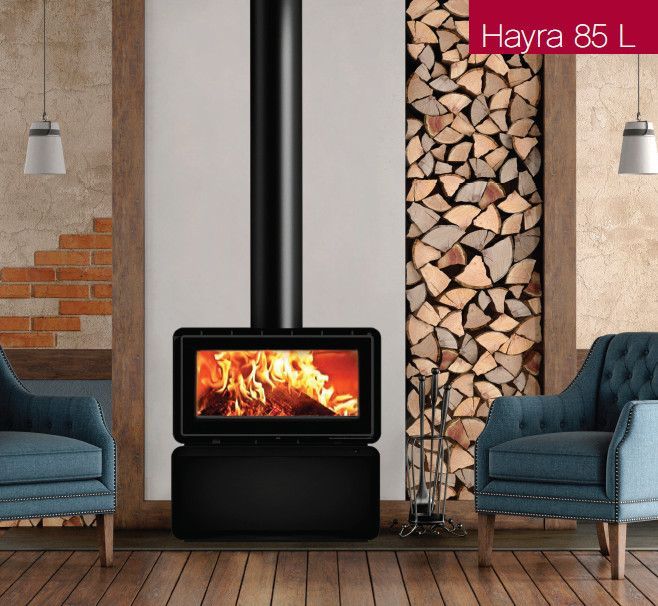

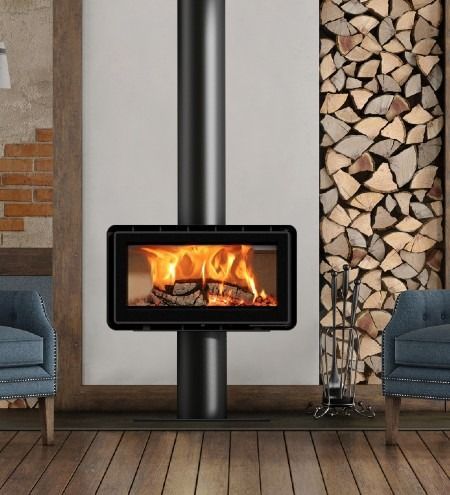

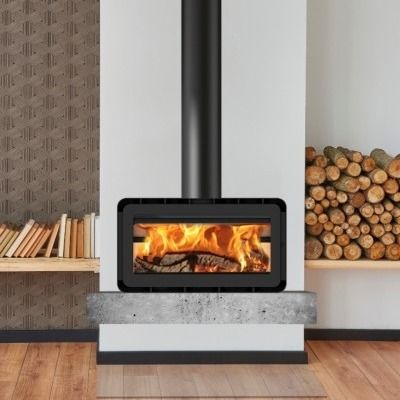

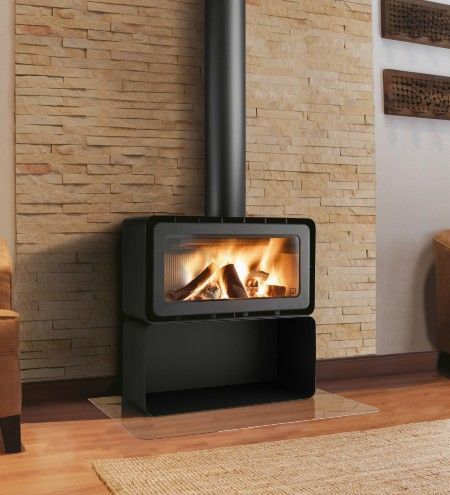

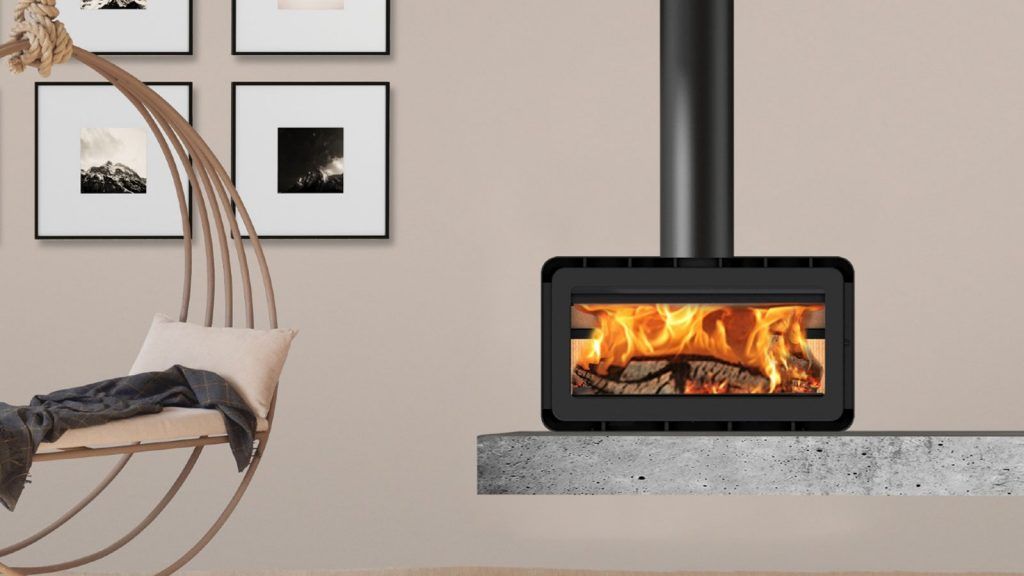

Available in three configurations - Hayra B (unit only), Hayra P (unit and pedestal base) and Hayra L (unit and stacker base).

ENQUIRE NOW

Medium Heater

  • Clean modern look
  • Heating capacity 150-200sqm
  • Optional pedestal or stacker base
  • Optional 2 speed fan on body only unit
  • Peak efficiency 72%
  • Emmissions 0.8g/Kg
  • 8" flue with automatic flue damper
  • Fully vermiculite lined firebox
  • B model is outside air compatible
  • Made in Portugal

Dimensions

B Unit: 465 h x 832 w × 460 d mm

P Unit & Pedestal Base: 865 h x 832 w x 460 d mm

L Unit & Stacker Base: 865 h x 832 w x 460 d mm


Rear of heater to centre of flue 180mm


Weight

B Unit  165 Kg

P Unit and Pedestal Base 170 Kg

L Unit and Stacker Base 210 Kg


Minimum Clearances

(with rear shield and flue shield)

Rear 200mm

Side 475mm

Corner 475mm

Front 650mm
