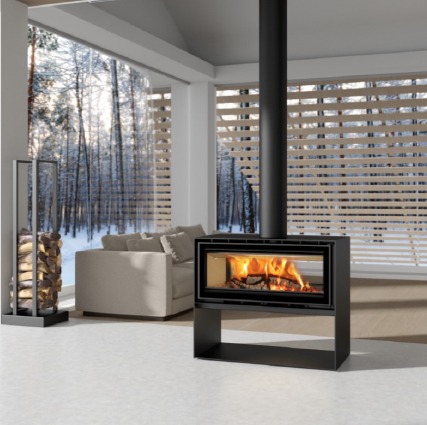

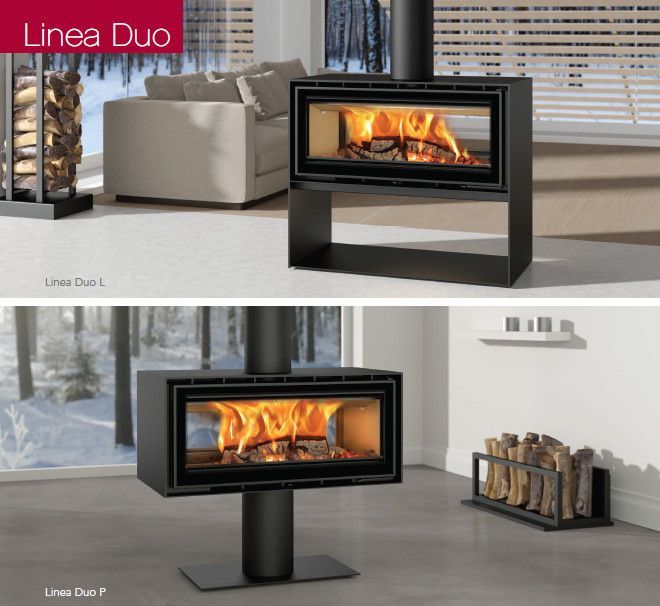

ADF Linea Duo Freestanding

Take in the captivating beauty of the unobstructed flames with the ADF Linea 100 Duo freestanding slow combustion wood heater. This modern looking wood burning heater is truly ideal for creating a cosy atmosphere over two rooms, or to separate a space for open plan interiors whilst still maintaining a visual and the light between the two areas. The user experience is at the forefront of this fireplace. Every minute detail is engineered to provide you with the ultimate in fireside luxury.

Combining contemporary styling with superb efficiency, ADF has created a spectacular fireplace for the modern age, with a minimalist design, with clean lines and crisp edges, that will fit perfectly with any design style

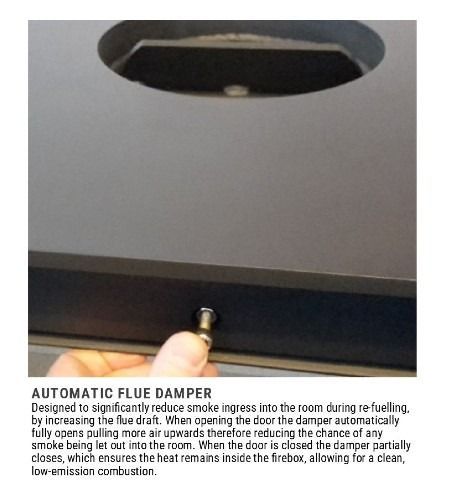

The fire is not only eye-catching, it operates beautifully. Internally, an automatic flue damper is designed to significantly reduce smoke ingress into the room during refuelling, by increasing the flue draft. When opening the door/s [on either side] the damper automatically fully opens, pulling more air upwards therefore reducing the chance of any smoke being let out into the room. When the door is closed the damper partially closes, which ensures the heat remains inside the firebox. This keeps your house at optimal temperatures and your wood consumption to a minimum.

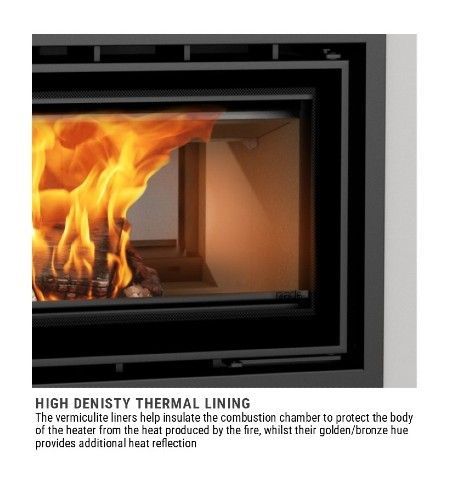

A high density thermal lining manufactured from vermiculite helps insulate the combustion chamber to protect the body from the heat produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

The firebox is constructed using high-strength 5mm quality steel that heats up quickly, and features a single and easy-to-use air control, and air flow technology. By controlling the airflow within the firebox, the glass on both sides can be kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat output, and air flow technology also ensures that any solid particles and volatile gases produced by the fire are re-ignited and burnt off before they can re-enter the atmosphere.

Providing an impressive average heat output of 24.0kW, the ADF Linea 100 Duo is ideal for heating areas from 200-250m².

ENQUIRE NOW

Medium - Large Heater

  • Double viewing area
  • Heating capacity 200-250sqm (24kW)

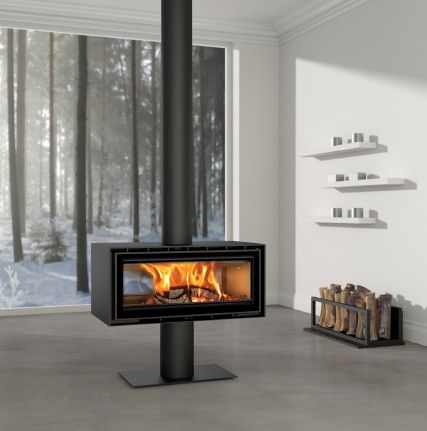

  • Optional pedestal or stacker base
  • Dual fans on body & stacker units
  • Peak efficiency 60%
  • Emmissions 1.1g/Kg
  • 8" flue with automatic flue damper
  • Vermiculite lined firebox
  • Outside air compatible on B model
  • Made in Portugal

Dimensions

Body Unit: 465 h x 1012 w × 450 d mm

Unit & Pedestal Base: 865 h x 1012 w x 450 d mm

Unit & Stacker Base: 865 h x 1012 w x 450 d mm


Rear of heater to centre of flue 175mm


Unit Body Weight 186 Kg

Unit and Pedestal Base Weight 215 Kg

Unit and Stacker Base Weight 250 Kg


MINIMUM CLEARANCES

(with rear heat shield & flue shield)


Rear 100mm

Side 525mm

Corner 525mm

Front 750mm
