ADF Linea Duo Inbuilt

Offering an unrivalled flame, the Linea 100 Duo wood burning fireplace is truly ideal for creating a cosy atmosphere over two rooms, or to separate a space for open plan interiors whilst still maintaining a visual and the light between the two areas. The user experience is at the forefront of this fireplace. Every minute detail is engineered to provide you with the ultimate in fireside luxury.

Externally the ADF Linea 100 Duo has a minimalist design, with clean lines, and crisp edges, that will fit perfectly with any design style.

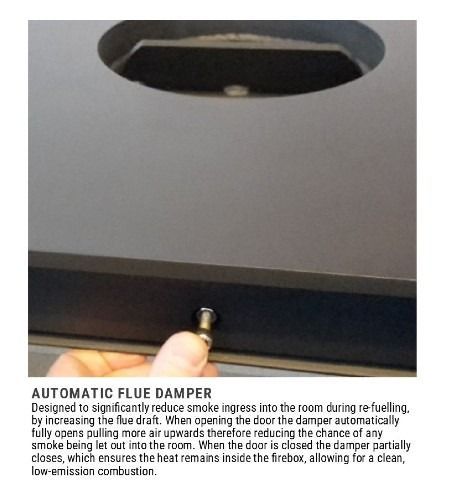

The fire is not only eye-catching, it operates beautifully. Internally an automatic flue damper is designed to significantly reduce smoke ingress into the room during refueling, by increasing the flue draft. When opening the door/s [on either side] the damper automatically fully opens pulling more air upwards therefore reducing the chance of any smoke being let out into the room. When the door is closed the damper partially closes, which ensures the heat remains inside the firebox. This keeps your house at optimal temperatures and your wood consumption to a minimum.

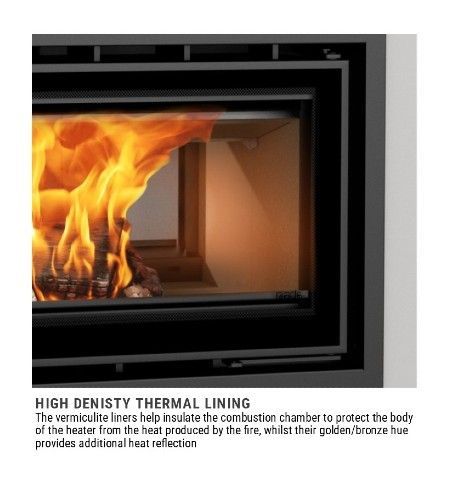

A high density thermal lining manufactured from vermiculite helps insulate the combustion chamber to protect the body from the heat produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

The firebox is constructed using high-strength 5mm quality steel and feature a single and easy-to-use air control, and air flow technology. By controlling the airflow within the firebox, the glass on both sides can be kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat output, and air flow technology also ensures that any solid particles and volatile gases produced by the fire are re-ignited and burnt off before they can re-enter the atmosphere.

ENQUIRE NOW

Medium Heater

  • Dual doors - double sided
  • Optional Zero Clearance Kit
  • Heating capacity 200-250sqm (24 kW)
  • Efficiency 60%
  • Emissions 1.1g/Kg

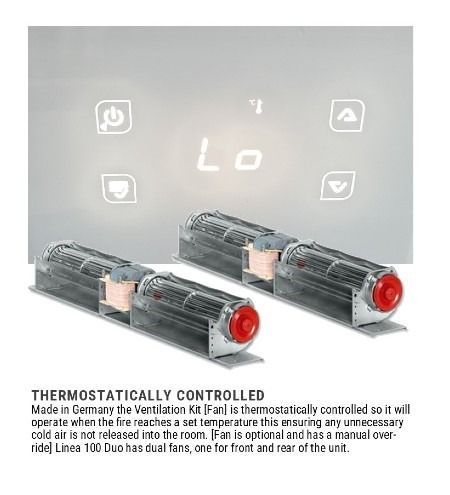

  • Dual German made tangential cross flow fans
  • Made in Portugal

Minimum Hearth Requirements

Thickness 6mm

Width 1240mm

Front (Cement Sheet) 300mm


Dimensions

Overall

1012 w × 465 h × 550 d mm


Rear of heater to middle of flue 275mm


Weight 220 Kg
