Arrow 1600 & 2000 Inbuilt

Arrow inbuilt wood heaters come standard with performance-enhancing cast iron firebox liners and cast iron grates, plus the convenience of the easy-to-use ash pan, which means easier cleaning and you need never let the fire go out. The triple-burn range of Arrow wood heaters takes winter warmth to a new level. The 2000 model is one of the biggest insert heaters on the market. With the ability to heat up to 350m2, this will keep your big homes cosy all winter long.

The fully welded steel plate firebox is fitted with performance-enhancing cast iron liners for greater heat retention in the firebox and transfer of heated air into the home. All Arrows have a 3-way air induction system to the firebox that provides for a complete burn of the fuel for optimum heat output. This 3-way air system also improves combustion even when the fuel is less than ideal. The standard 3-speed fan ensures maximum heat distribution, effectively heating your home.

Primary combustion air enters the base of the firebox, which provides rapid ignition and quicker heat output. Secondary pre-heated fresh air is drawn into the firebox via tubes and an air wash that directs air over the inner door glass not only ignites unburnt gases but keeps the door glass clean for a better view of the fire. The introduction of further pre-heated fresh air immediately below the baffle plate at the hottest part of the fire provides almost complete combustion and further reduces emission levels.

FEATURES

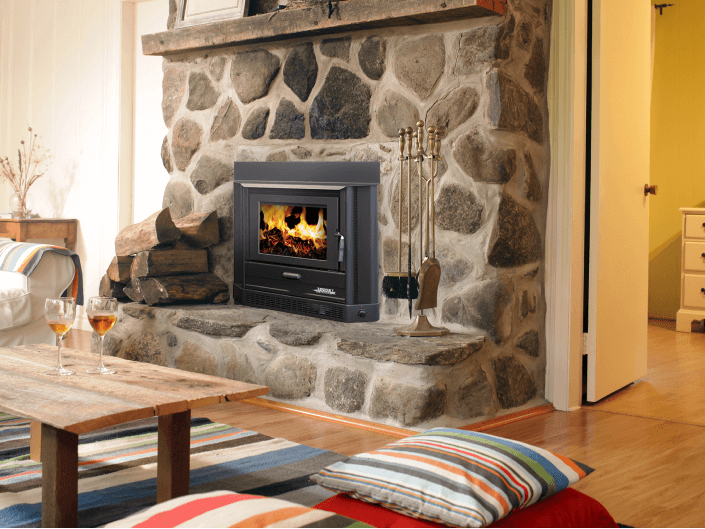

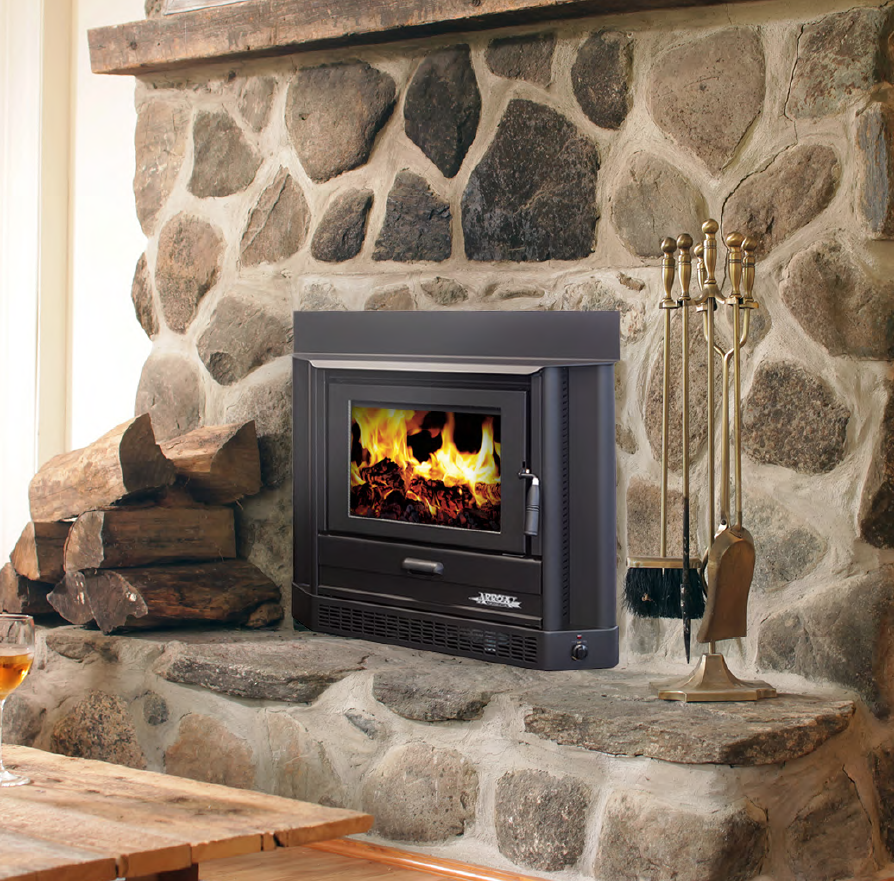

Arrow 1600

• Heats up to 25 squares
• Ave heat output 12.7Kw
• Ave heating efficiency 65%
• Emissions 1.0g/kg
• Cast iron grates and liners
• Triple burn system

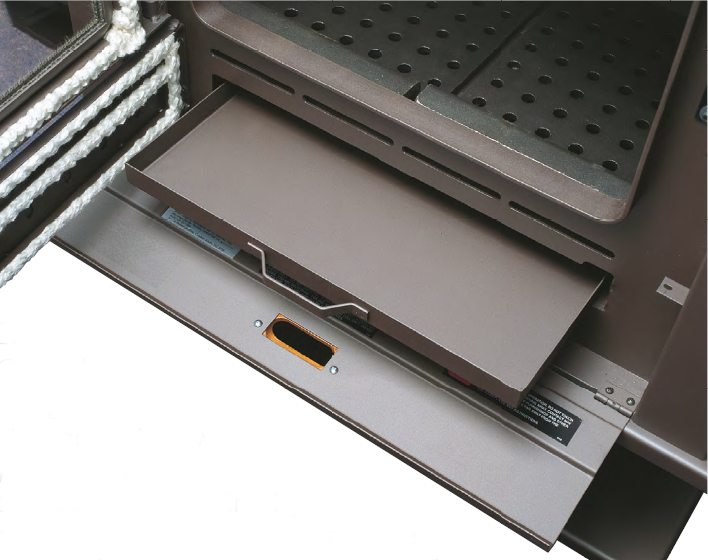

• Grate and ash pan system
• 3 speed fan


DIMENSIONS

Firebox: 698mm H x 556mm W x 335mm D



Overall: 814mm H x 900mm W x 476mm D | 200Kg

CLEARANCES

Rear brick fireplace only 15mm side x 500mm top | Hearth 450mm front x 107mm side

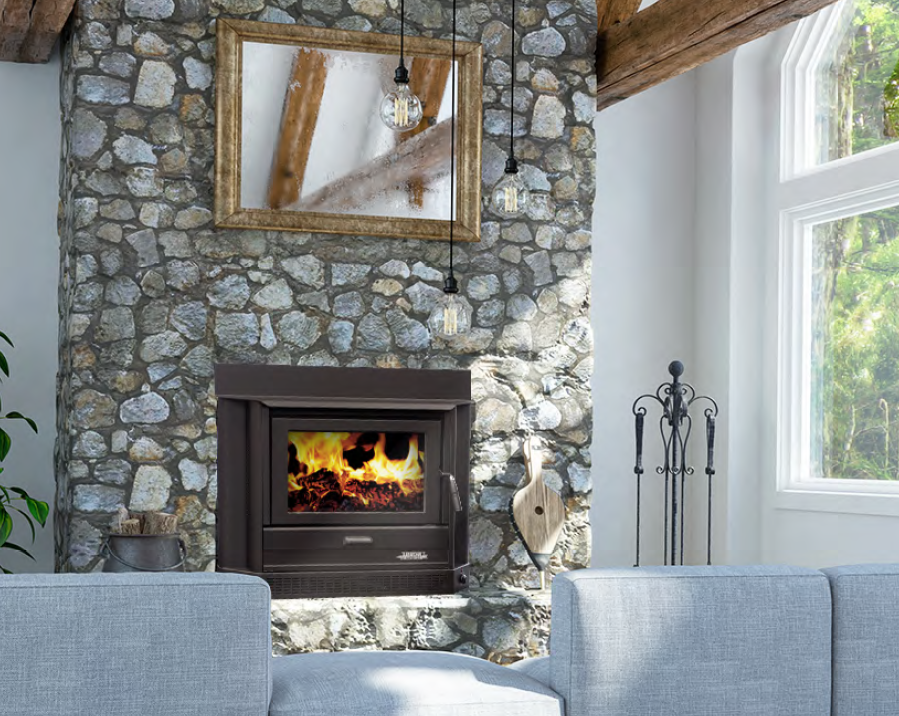

Arrow 2000

• Heats up to 35 squares
• Ave heat output 18.1 Kw
• Ave heating efficiency 60%
• Emissions 1.0g/kg
• Cast iron grates and liners
• Triple burn system
• Grate and ash pan system
• 3 speed fan

DIMENSIONS

Firebox: 698mm H x 690mm W x 390mm D



Overall: 814mm H x 1028mm W x 532mm D | 200Kg

CLEARANCES

Rear brick fireplace only 20mm side x 550mm top | Hearth 470mm front x 155mm side
