Arrow 1800 & 2400
Since it’s introduction in 1981, Arrow wood heaters have set the benchmark for solid, reliable, effective wood heating that is timeless. Since it’s introduction in 1981, Arrow wood heaters have set the benchmark for solid, reliable, effective wood heating that is timeless. Arrow’s enduring traditional styling and rugged heavy duty construction ensures years of unparalleled heating performance in a very practical manner. The fully welded steel plate firebox is fitted with performance enhancing cast iron liners for greater heat retention in the firebox and transfer of heated air into the home.
Each Arrow unit has a fully welded steel plate firebox is fitted with performance enhancing cast iron liners for greater heat retention in the firebox and transfer of heated air into the home.
Arrow wood heaters have a 3-way air induction system to the firebox that provides for a complete burn of the fuel for optimum heat output. This 3-way air system also improves combustion even when the fuel is less than ideal.
The standard 3 speed fan ensures maximum heat distribution, effectively heating your home. Primary combustion air enters at the base of the firebox, which provides rapid ignition and quicker heat output. Secondary pre-heated fresh air is drawn into the firebox via tubes and an air wash that directs air over the inner door glass that not only ignites unburnt gases but keeps the door glass clean for a better view of the fire. The introduction of further pre-heated fresh air immediately below the baffle plate at the hottest part of the fire provides almost complete combustion and further reduces emission levels.

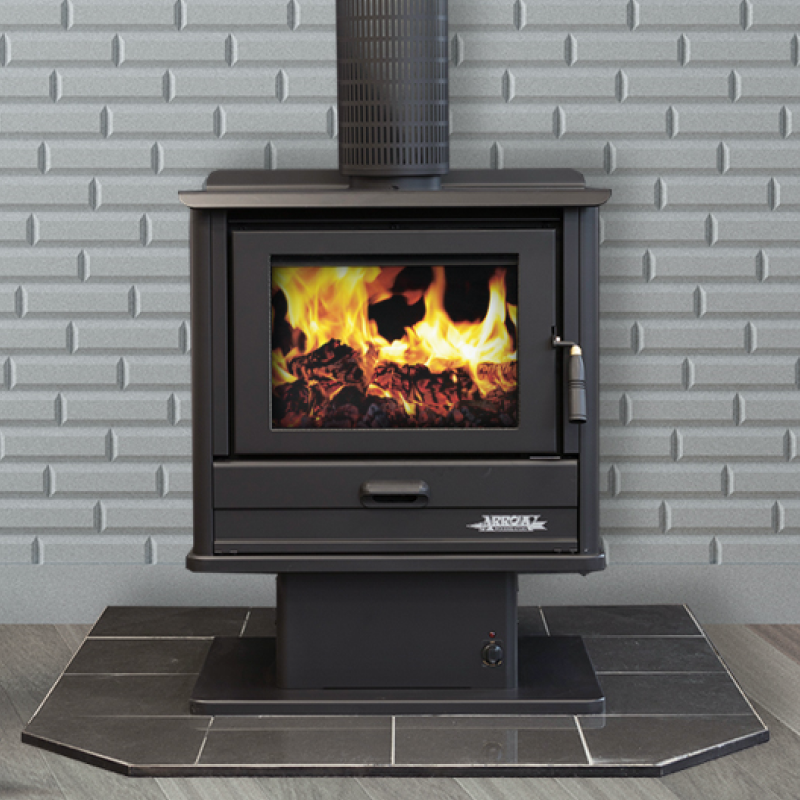

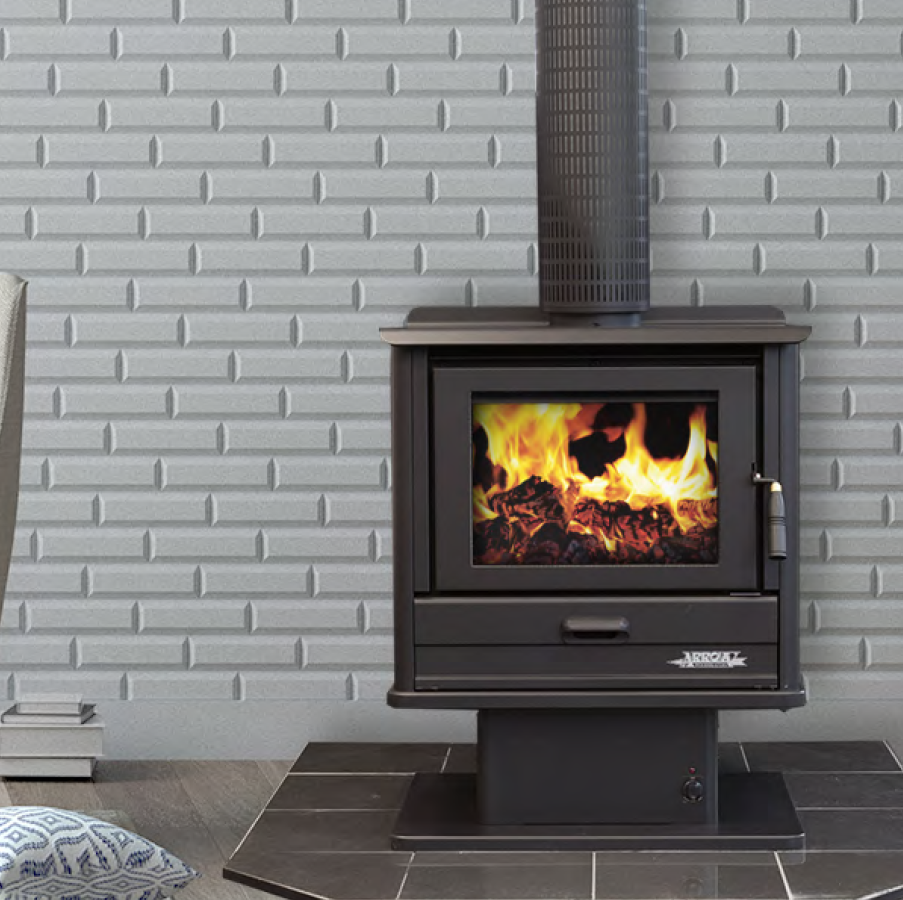

ARROW 1800 FEATURES
- Made in Australia
- Cast iron grates and liners for greater heat output and durability

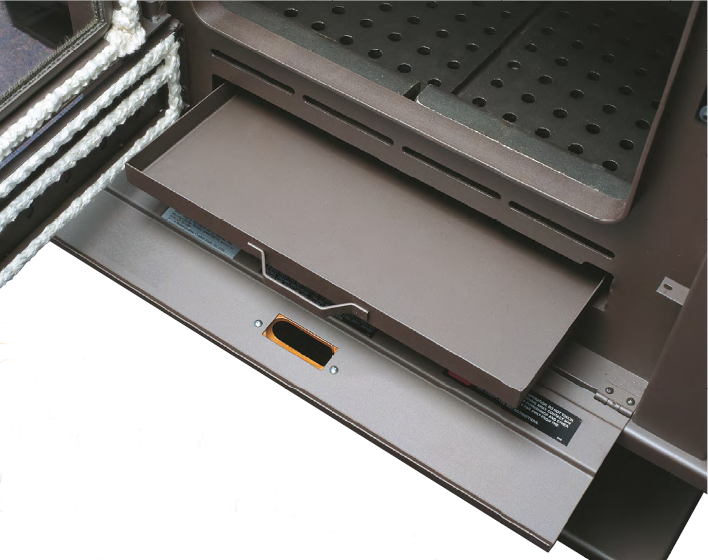

- Grate and ash pan system for easy cleaning
- Triple burn technology
- 3 speed fan
- Heats up to 250sqm
- Heating efficiency 65%
- Peak output 12.6Kw
- Emissions 1.4g/Kg

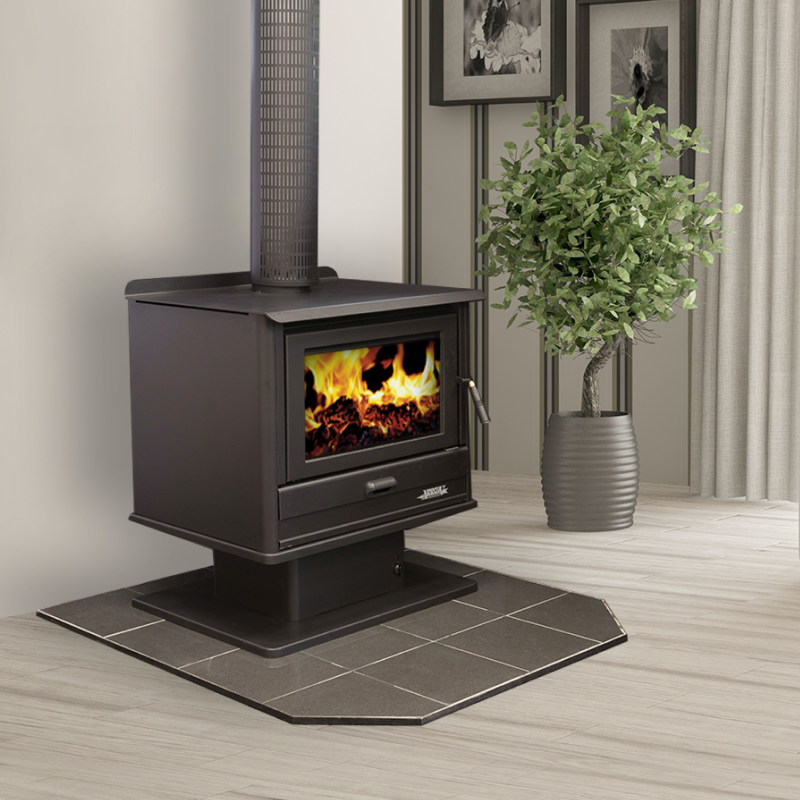

ARROW 2400 FEATURES
- Made in Australia
- Cast iron grates and liners for greater heat output and durability
- Grate and ash pan system for easy cleaning
- Triple burn technology
- 3 speed fan
- Heats up to 350sqm
- Heating efficiency 67%
- Peak output 16.5Kw
- Emissions 1.1g/Kg
CLEARANCES
Arrow 1800: Rear 150mm | Sides 300mm | Corner 130mm | Front 300mm
Arrow 2400: Rear 150mm | Sides 380mm | Corner 100mm | Front 500mm
