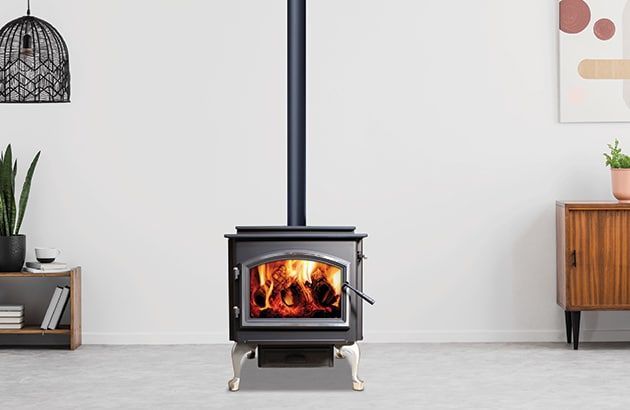

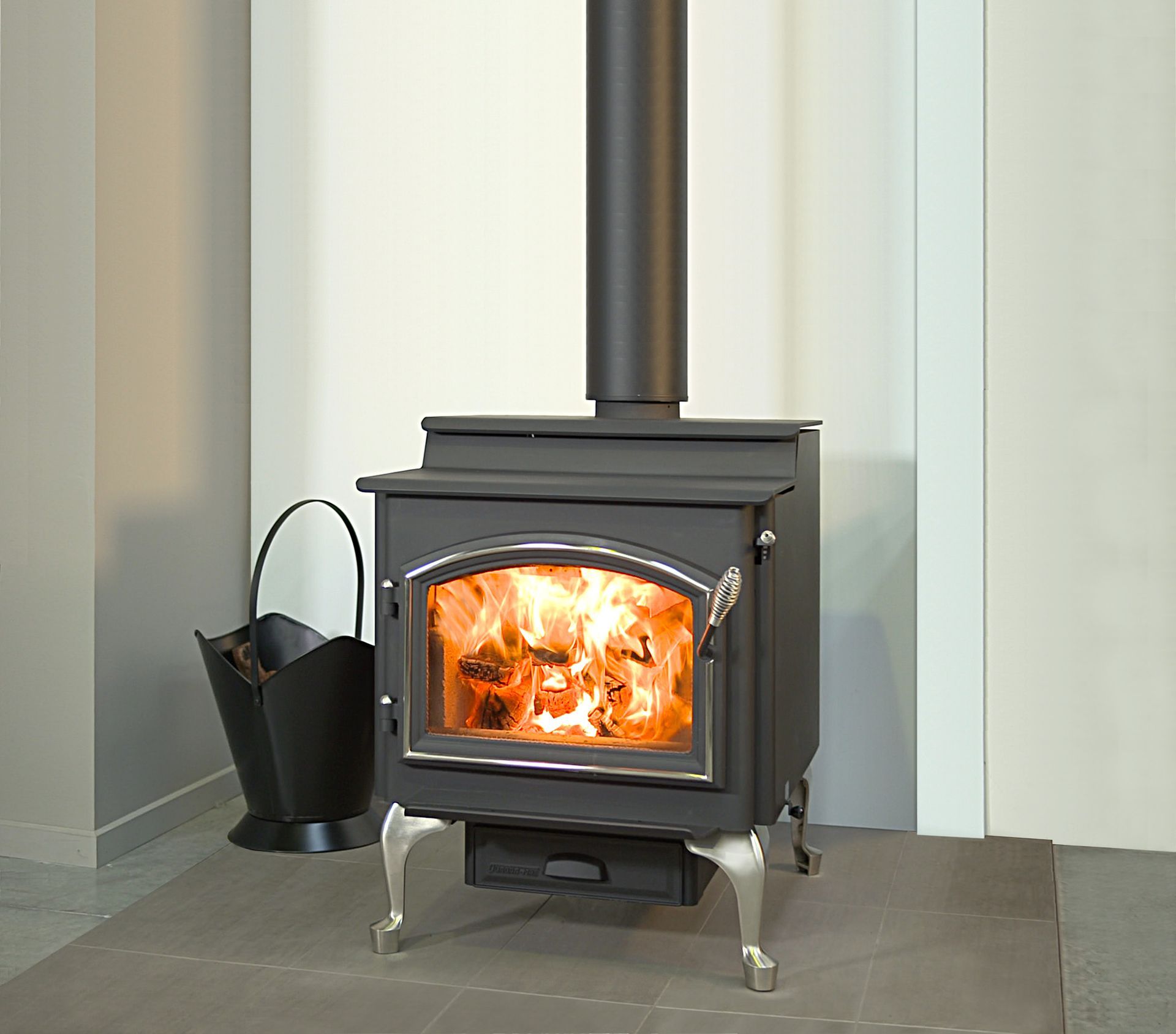

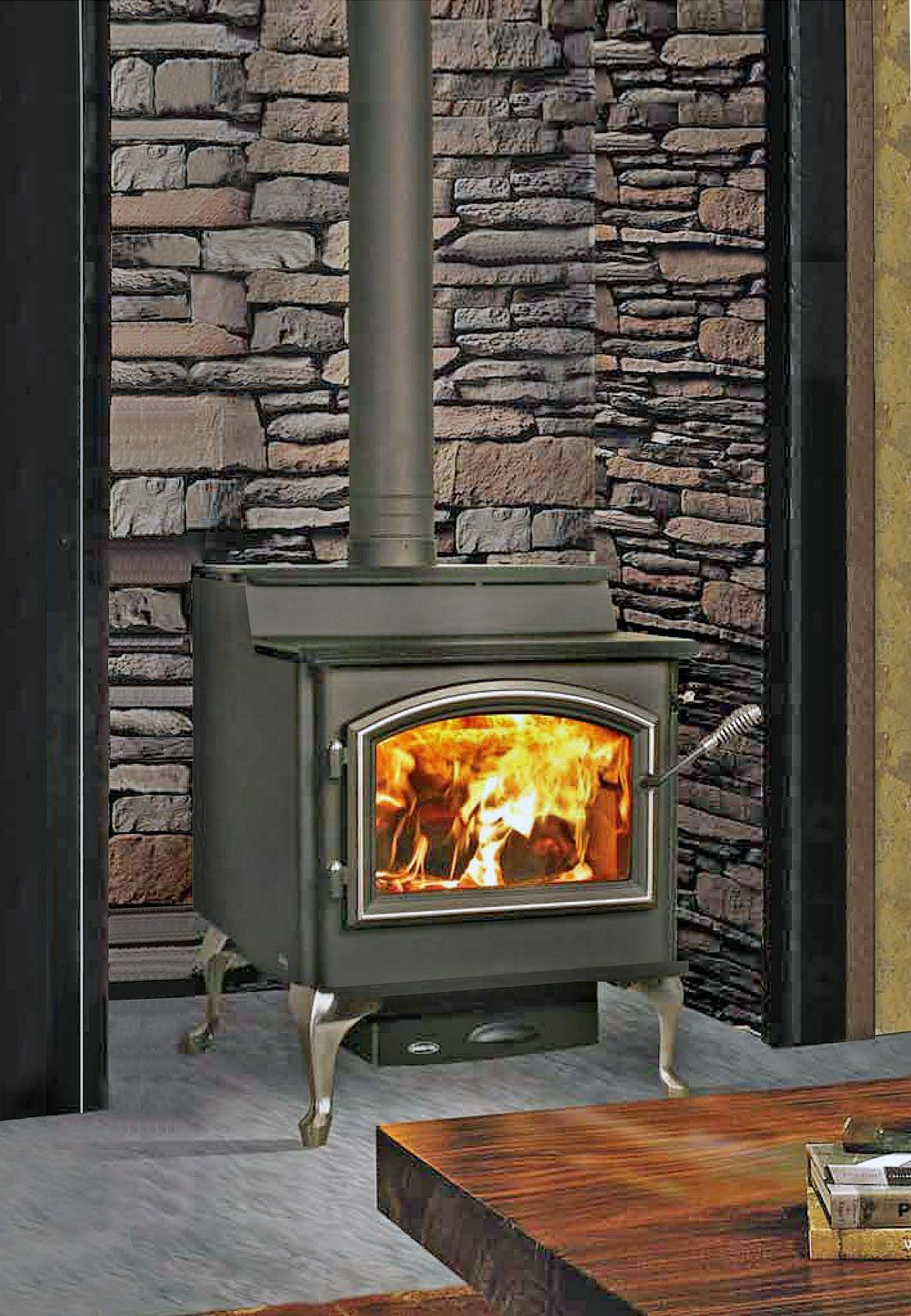

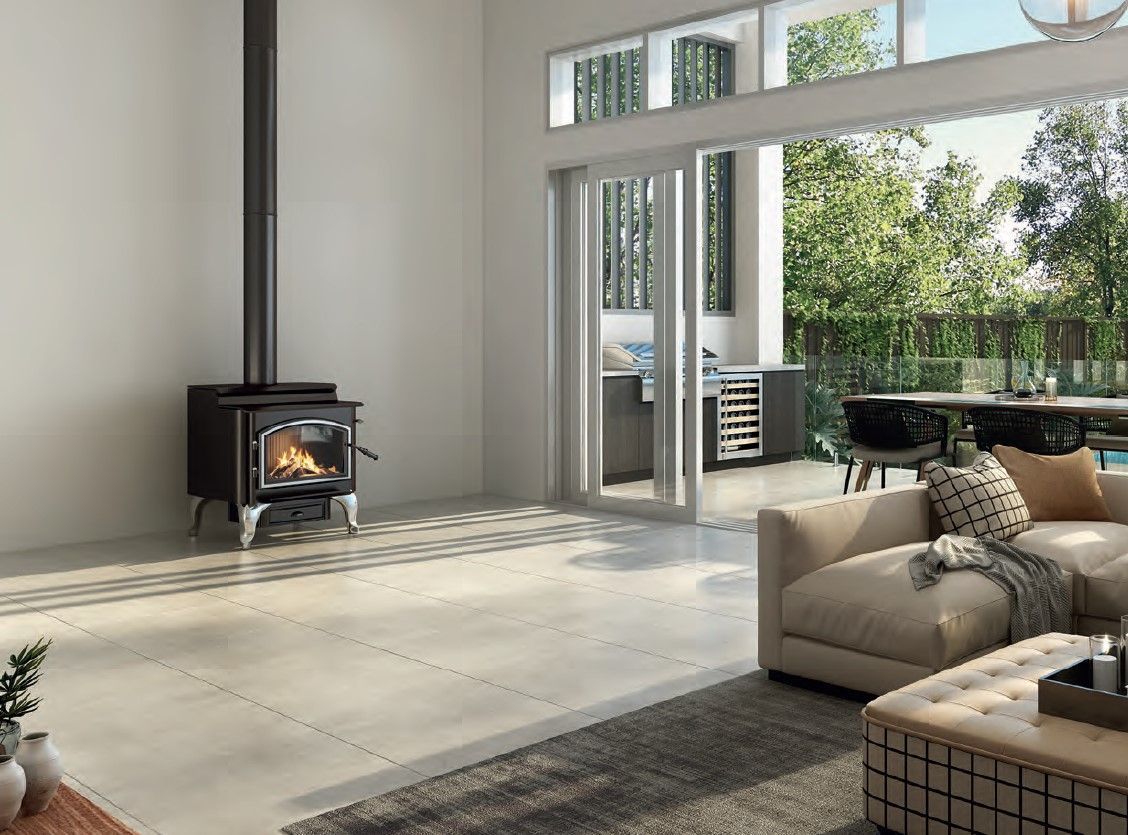

Quadra-Fire 57 Step Top

The Quadra-Fire 57 Step Top wood stove is designed to deliver powerful performance in an attractive step-top design. Features durable construction, a fully welded, brick lined firebox with thick-plate steel and heavy duty hinges. Quadra-Fire’s exclusive Automatic Combustion Control (ACC) technology delivers precision airflow management for longer, cleaner and more efficient burns with easy operation.

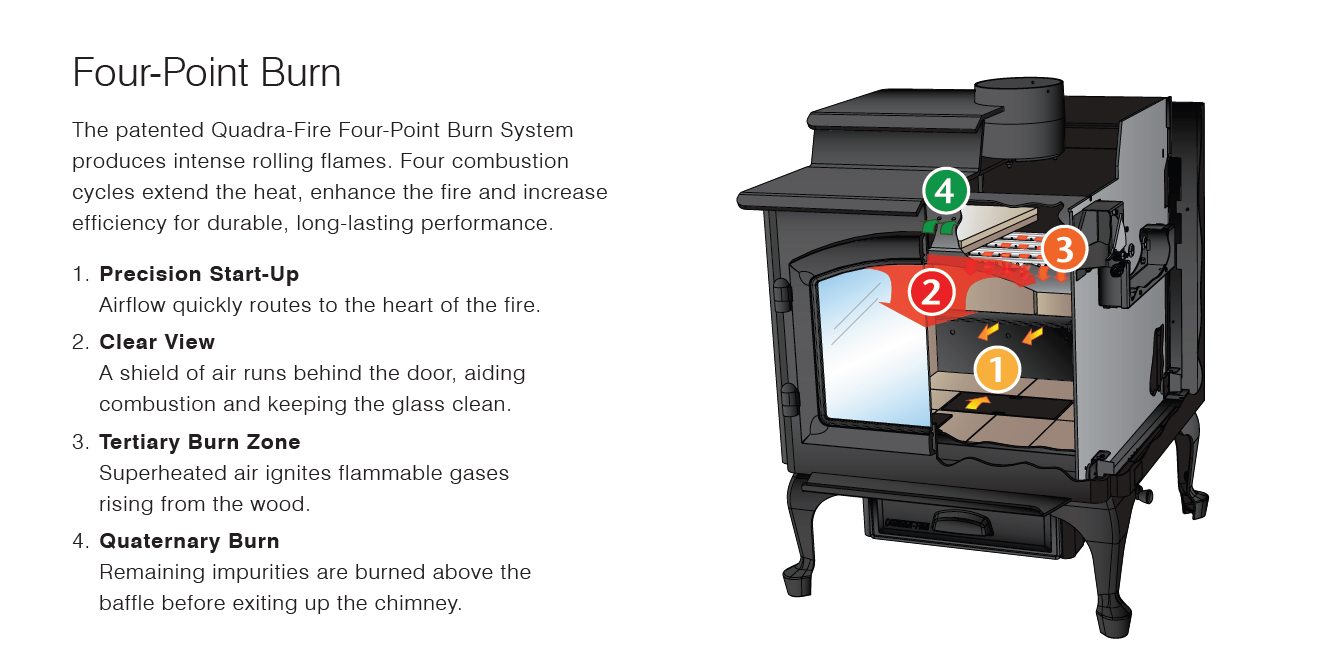

The largest freestanding wood stove in the Quadrafire range, the 57 Step Top delivers high efficiency and low emissions PLUS a maximum burn time of 21 hours. The durable steel construction, ash removal system and patented four-point combustion technology ensures that the 57 Step Top will deliver exceptional heat output for years and years.

Large Heater

  • Made in USA
  • Heats up to 370sqm
  • Emissions 1.5g/Kg
  • Peak efficiency 73%
  • Optional 3 speed fan
  • Up to 21 hour burn time
  • Automatic Combustion Control (ACC)
  • 15 year firebox warranty
  • 8mm active cook top
  • Cast iron door
  • Large ash lip
  • Ashpan cleaning system
  • Can connect directly to outside air
  • Can fit log up to 480mm
  • Optional Satin Nickel door trim
  • Optional Satin Nickel Queen Anne Legs
  • Optional Pedestal base (no ashpan)

Dimensions

Quadrafire 57 Step Top

Leg Model 893 H x 686 W x 768 D mm

Pedestal Model 978 H x 686 W x 768 D mm


Rear of heater to flue centre 170mm


Weight 220Kg


MINIMUM CLEARANCES

Rear 200mm

Side 330mm

Corner 100mm

Front 450mm



Installation & Operating Manual

Brochure
