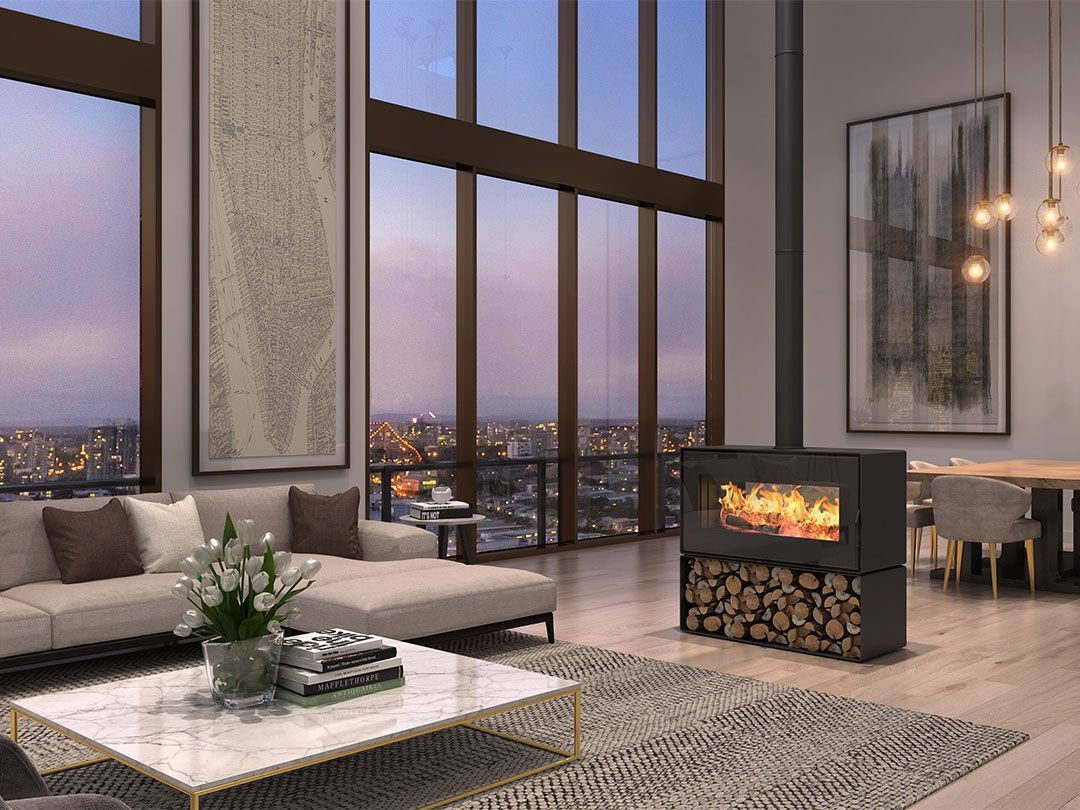

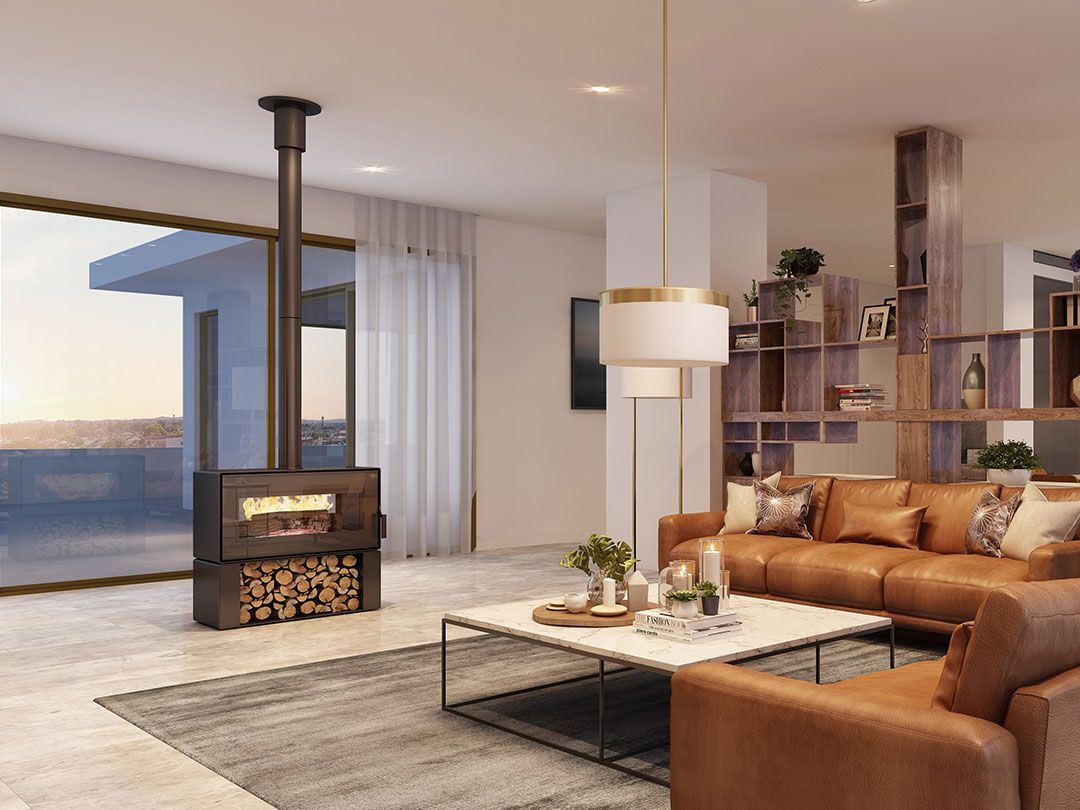

With a heating capacity up to 30 squares, the Visionline Taurus Double Sided slow combustion wood heater incorporates all the great features of our single sided Taurus into a double sided panoramic fireplace. Designed from the ground up for Australia, this fireplace offers high heat output combined with long burn times while maintaining sleek European styling. Thick steel construction combined with white hue kiln brick liners deliver incredible durability, perfectly suited to Australian Hardwood.

Large Heater

  • Heats up to 300sqm
  • Peak efficiency 68%
  • Emissions 0.8g/Kg
  • Up to 12hr burn time
  • 5 x Heavy Duty Kiln Brick Liners and baffle
  • Dual self-closing doors with dual latch locking
  • Built in ash lip for cleaner operation
  • Primary and secondary air control
  • Outside Air Ready
  • Optional dual inbuilt fan pedestal
  • Freestanding or Inbuilt Zero Clearance installation
  • Can fit up to 700mm log

Dimensions

VisionLINE Taurus Double Sided

Unit Only 567 H x 1042 W x 440 D mm


Unit & Stacker Fan Base

979 H x 1042 W x 440 D mm


Unit & Stacker Base (No Fan)

968 H x 1042 W x 440 D mm


Rear of Heater to Centre of Flue 220mm


MINIMUM CLEARANCES

Rear 1400mm

Side 350mm

Front 300mm with stacker base, 500mm unit only


Weight

Unit Only 220Kg

Unit and Stacker Base 310Kg
